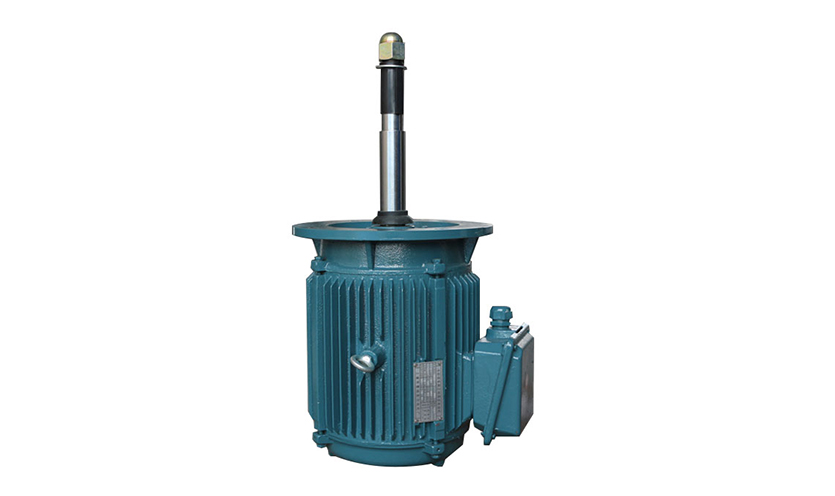

該系列電機具有高效、節能、起動轉矩大、性能好、噪音低、振動小、可靠性高及使用維護方便等優點。功率等級和安裝尺寸符合IEC標準。外殼防護等級為IP441；全封閉自扇冷卻，冷卻方式為IC411。接法：3KW以下為Y接法、4K以上為△接法。
| 型號 | 功率（KW） | Current（A） | 轉速（R/MIN） |
| YCCL801-4 | 0.55 | 1.5 | 1390 |
| YCCL802-4 | 0.75 | 2 | 1390 |
| YCCL90S-4 | 1.1 | 2.7 | 1400 |
| YCCL90S-4 | 1.5 | 3.7 | 1400 |
| YCCL100L1-4 | 2.2 | 5.2 | 1420 |
| YCCL100L2-4 | 3 | 6.9 | 1420 |
| YCCL112M-4 | 4 | 8.9 | 1440 |
| YCCL132S-4 | 5.5 | 11.6 | 1440 |
| YCCL132M-4 | 7.5 | 15.4 | 1440 |
| YCCL160M-4 | 11 | 22.6 | 1460 |
| YCCL160L-4 | 15 | 30.3 | 1460 |
| YCCL180M-4 | 18.5 | 35.9 | 1470 |
| YCCL180L-4 | 22 | 42.5 | 1470 |
| YCCL200L-4 | 30 | 56.7 | 1470 |
| YCCL800-6 | 0.18 | 0.75 | 910 |
| YCCL801-6 | 0.25 | 0.95 | 910 |
| YCCL802-6 | 0.37 | 1.2 | 910 |
| YCCL803-6 | 0.55 | 1.7 | 910 |
| YCCL90S-6 | 0.75 | 2.3 | 910 |
| YCCL90L-6 | 1.1 | 3.2 | 910 |
| YCCL100L-6 | 1.5 | 4 | 940 |
| YCCL112M-6 | 2.2 | 5.8 | 940 |
| YCCL132S1-6 | 3 | 7.2 | 960 |
| YCCL132S2-6 | 4 | 9.4 | 960 |
| YCCL132M-6 | 5.5 | 12.5 | 960 |
| YCCL160M-6 | 7.5 | 17 | 970 |
| YCCL160L-6 | 11 | 24.6 | 970 |
| YCCL180L-6 | 15 | 31.1 | 970 |
| YCCL200L1-6 | 18.5 | 37.6 | 970 |
| YCCL200L2-6 | 22 | 44.5 | 970 |
| YCCL801-8 | 0.18 | 1.1 | 700 |
| YCCL802-8 | 0.25 | 1.25 | 700 |
| YCCL803-8 | 0.37 | 1.7 | 700 |
| YCCL90S1-8 | 0.37 | 1.4 | 700 |
| YCCL90S2-8 | 0.55 | 1.9 | 700 |
| YCCL90L-8 | 0.75 | 2.5 | 700 |
| 100L1-8 | 0.75 | 2.7 | 700 |
| YCCL100L2-8 | 1.1 | 3.5 | 700 |
| YCCL112M-8 | 1.5 | 4.5 | 700 |
| YCCL132S-8 | 2.2 | 5.8 | 710 |
| YCCL132S2-8 | 3 | 7.7 | 710 |
| YCCL160M1-8 | 4 | 9.9 | 720 |
| YCCL160M2-8 | 5.5 | 13.3 | 720 |
| YCCL160L-8 | 7.5 | 17.7 | 720 |
| YCCL180L-8 | 11 | 25.1 | 730 |
| YCCL200L-8 | 15 | 34 | 730 |
| YCCL100L2-10 | 0.75 | 3.1 | 550 |
| YCCL100L2-12 | 0.75 | 3 | 450 |
| YCCL160M-10 | 4 | 10 | 560 |
| YCCL112M-12 | 1.1 | 4.6 | 450 |
| YCCL132M1-12 | 1.5 | 5.5 | 450 |
| YCCL132M2-12 | 2.2 | 7.7 | 450 |
| YCCL160M-12 | 3 | 9.65 | 470 |
| YCCL160L1-12 | 4 | 12.5 | 470 |
| YCCL160L2-12 | 5.5 | 16.7 | 470 |
| YCCL180L-12 | 7.5 | 22.1 | 470 |
| YCCL132M2-14 | 1.5 | 6.1 | 390 |
| YCCL160L-14 | 4 | 13 | 395 |
| YCCL160M1-16 | 1.5 | 6.23 | 320 |
| YCCL160M2-16 | 2.2 | 8.69 | 320 |
| YCCL160L-16 | 3 | 11.1 | 320 |
| YCCL180L-16 | 4 | 12.2 | 350 |
| YCCL180L-16 | 5.5 | 18.7 | 335 |
| YCCL200L-20 | 4 | 15.1 | 240 |
